CH-47 Chinook
Boeing Vertol 114

Canadian Bv206 vehicle on US army CH-47D in Afghanistan


Developed as YCH-1 at the end of the 50s, the Chinook is the standard US Army and several more countries medium transport helicopter. It was also produced in Italy by Meriodionali SpA.

underslung

It has a loading ramp in the tail and is capable of carry large underslung loads

There is also a variant called MH-47 for the special forces.

MH-47 Aerial Refueling





Type: Medium Cargo
First Flight : CH-47A : Sep 21, 1961
Crew / Load: 2 up to 44

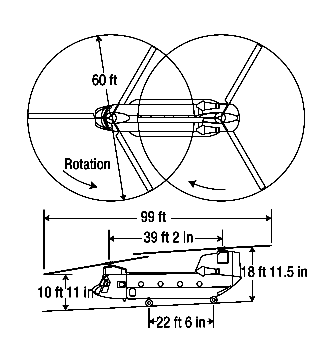

3 views

CH-47D :
Engines: 2 * 3750 shp Lycoming T55-712
Speed: 256 km/h -- Max: 291
Range: Ferry: 2020 km
Service Ceiling: 4570 m
Weight: Empty: 10475 kg -- Max: 22680
Rotor Span: 18.29 m
Length: 30.18 m
Height: 5.68 m
Disc Area: 525.34 m2

Argentine Army CH-47C Chinook
